Infrared heating by heatness® – simply heat at the best price!

Ceiling heater Simple Direct

7.463,00 R12.063,00 R  incl. VAT

  • unobtrusive and still practical: heating from the ceiling
  • with a heat-up time of only 5 minutes
  • simple installation for all
SKU: N/A Category:

Description

The direct version of our infrared heating for the ceiling heats your rooms optimally from above, without heat loss! This means that it can be installed in any room – ideally on the least used part of the room. The heating system is not only energy-efficient, but also blends inconspicuously into its surroundings – quantity in quality!

Technical data

infrarotheizung-xl-symbol infrarotheizung-l-symbol infrarotheizung-m-symbol
Size 120 x 60 x 2,5 cm 90 x 60 x 2,5 cm 60 x 60 x 2,5 cm
Power 700 Watt 500 Watt 350 Watt
Weight 7,35 kg 5,8 kg 3,95 kg
Position Ceiling Ceiling Ceiling
Series Simpel Direct Simpel Direct Simpel Direct
Protection Class IP65 IP65 IP65

Size table

In our range you will find the Simple Direct ceiling heating in various sizes (M-XL) – so you are sure to find the right heater for your individual requirements! The following size table will help you with your selection.

Depending on the insulation, the heatable room size may vary upwards or downwards. But don’t worry, if in doubt, we recommend that you always opt for the larger heater. We would also be happy to calculate your personal heating requirements and provide you with a non-binding offer!

Heater size Heatable room size* Dimensions Electrical power
infrarotheizung-xl-symbol 15 m² 60 x 120 cm 700 Watt
infrarotheizung-l-symbol 10 m² 60 x 90 cm 500 Watt
infrarotheizung-m-symbol 7 m² 60 x 60 cm 350 Watt

*These figures are based on a well insulated room with a room height of 2.5 m.

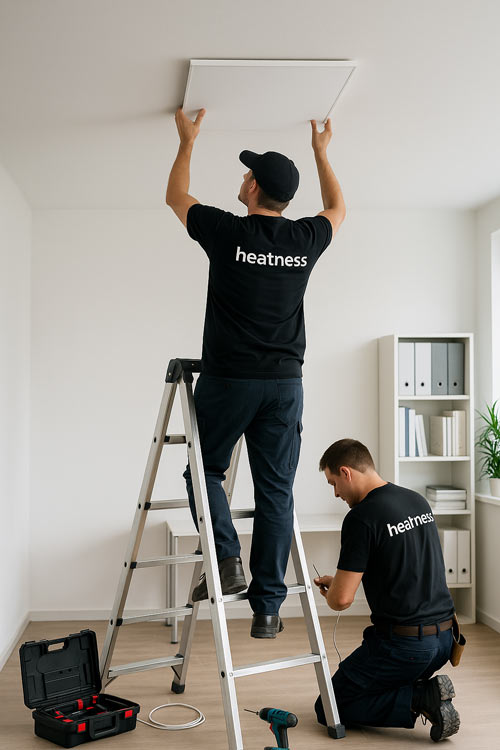

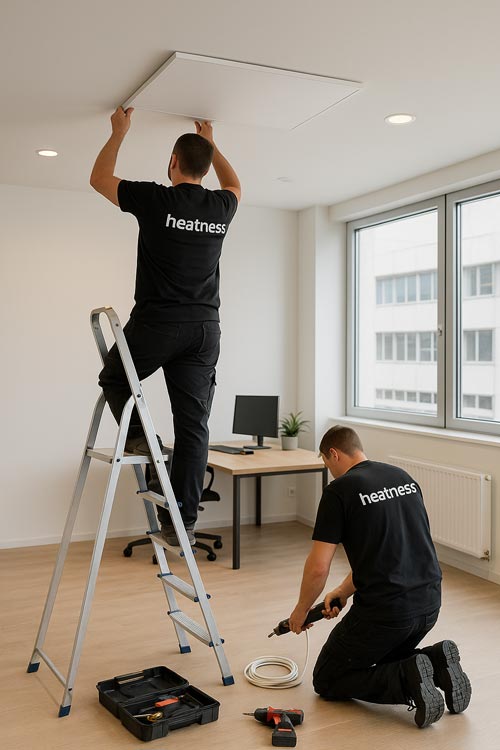

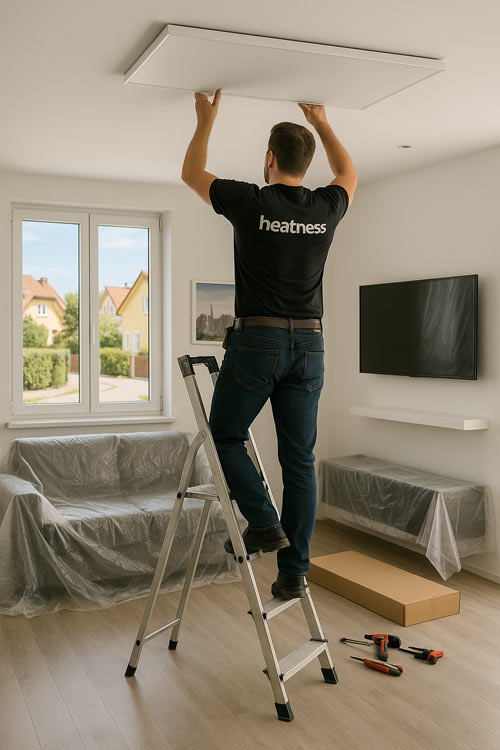

Installation of an infrared ceiling heating

There are two types of installation: direct or suspended. But no matter which type of installation you choose: Both variants are absolutely safe and do not require any special expertise.

Direct mounting is recommended for a room height of 2.5-3 m, as the heat radiates at an angle of 130 degrees up to 3 metres into the room. For direct installation, proceed as follows:

  1. Unpack product.
  2. Choose a spot on the ceiling (make sure there is a power connection).
  3. Stick on the templates
  4. Drill at the marking
  5. Insert dowels
  6. Install the ceiling heating

Suspended ceiling installation is advisable for rooms with a height of 3 metres or more, as this allows the infrared C-rays to reach the material optimally without losing heat. If possible, two people should work together when installing the suspended version.

Here you will find the corresponding model of suspended ceiling heating.

Safety factor with direct ceiling heaters

The safety of our infrared heaters has been confirmed by the radiation experts at Seibersdorf Laboratories:

PDF-Symbol

Gutachten Seibersdorf Laboratories

There is therefore no risk of burns. However, we recommend not touching the heater during operation. In children’s rooms, the heater must be installed out of the reach of children. This applies not only to heaters on the wall, but also to the ceiling heating system, especially if your child sleeps in a loft bed! It also applies to heatness® heating models that they must not be covered.
